INFLATION3 Twin High Performance Air Compressor CKMTA12 and Extension Hardware for Easy Installation and Connection in a New Printed Box, Ideal for Lockers, Horns, Tire Inflation and Air Tools

INFLATION3 Twin High Performance Air Compressor CKMTA12 and Extension Hardware for Easy Installation and Connection in a New Printed Box, Ideal for Lockers, Horns, Tire Inflation and Air Tools

$835.99 USD
$0.00 USD $835.99 USD
Sale Sold out
Color
  • 1- Motors are water sealed, 100% ball bearing equipped (i.e. no bushings), and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.
  • 2- Compact twin motor, dual cylinder design makes it the highest flowing compressor in its class (voltage vs. size). Highest air flow rate of any 12V compressor of its size on the market at 174LPM [6.16CFM].
  • 3- Full wiring loom included for simplified installation and easy plug-in connectivity to Air Locker control solenoids. (Note: Air Locker Manifold Kit #171503 required to mount solenoids).
  • 4- Motors are internally thermal protected against extreme temperature damage. Over-pressure safety valve equipped. Equipped with dual heavy duty Maxi-Fuses for professional in-line circuit protection and true circuit redundancy in case of a fault.
  • 5- Compressor pistons are equipped with a heavy duty European made cylindrical roller bearing. Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fibre piston seals for reduced friction and maximum trouble free life.

Product Description

INFLATION KIT EASY ACCESS FOR CKMTA12

ARB CKMTA12 Twin Air Compressor 12V with Extension Hardware

Kit Includes: Air Compressor CKMTA12, two ARB 0740110 Branded 90 degrees Elbows JIC4 Male 1/4" NPTM, ARB 171314 Remote Hose Coupling Kit with Quick Connect Coupling, 3 Way Mounting ARB 0740113 Branded Air Hose and ARB 074203 1 m Braided Air Hose.

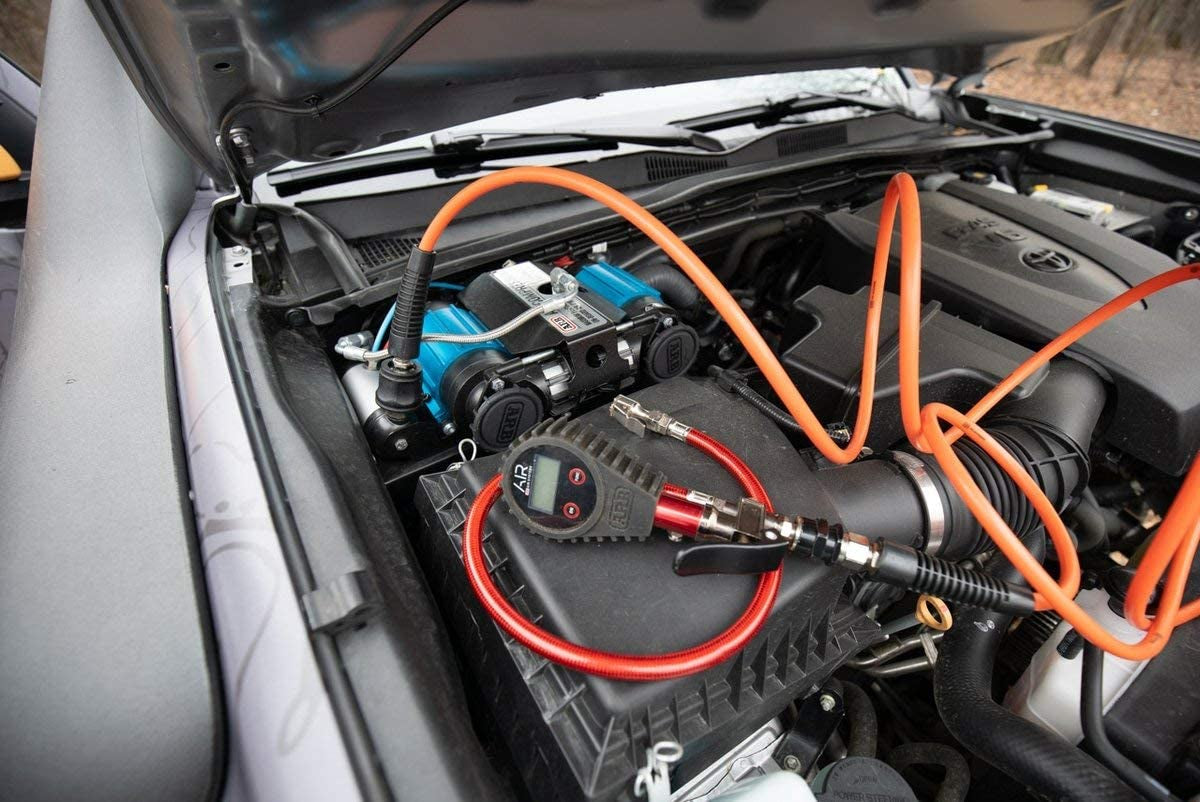

Easy access to compressed air

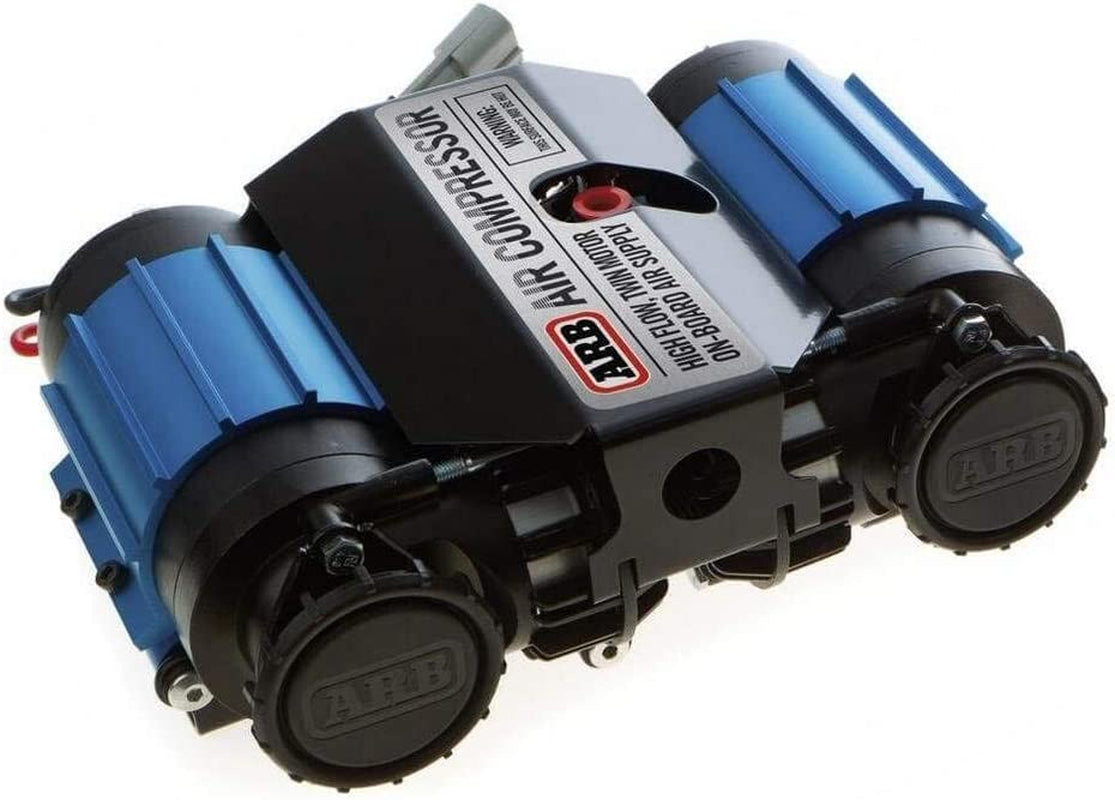

ARB CKMTA12 Twin On-Board Air Compressor

Due to the size of the CKMTA12 many truck owners have no choice but to install CKMTA12 on any available part of their vehicle, generating an accessibility problem to that compressed air. This is why inflation kit was made, in order to solve the accessibility problem and provide easy access to the compressed air.

  1. TWIN COMPRESSOR

    The ARB Twin motor design delivers class-leading airflow for fast inflation purposes. It incorporates internal thermal protection against extreme temperature damage.

  2. DURABLE MATERIALS

    Constructed of lightweight, high-strength engineering-grade materials, it incorporates quality components for quiet operation and extended durability.

  3. CKMTA12 SPECS

    Designed for inflating Tires and air locker activation when used in conjunction with optional accessories / 100% duty cycle / Sealed for moisture resistance / Anodized mounting bracket dissipates heat

  4. ARB 074203 Portable Air Hose - 1m Braided Air Hose

    This Braided Air Hose can be installed anywhere your car hook provides easy installation and access to the CKMTA12 compressed Air.

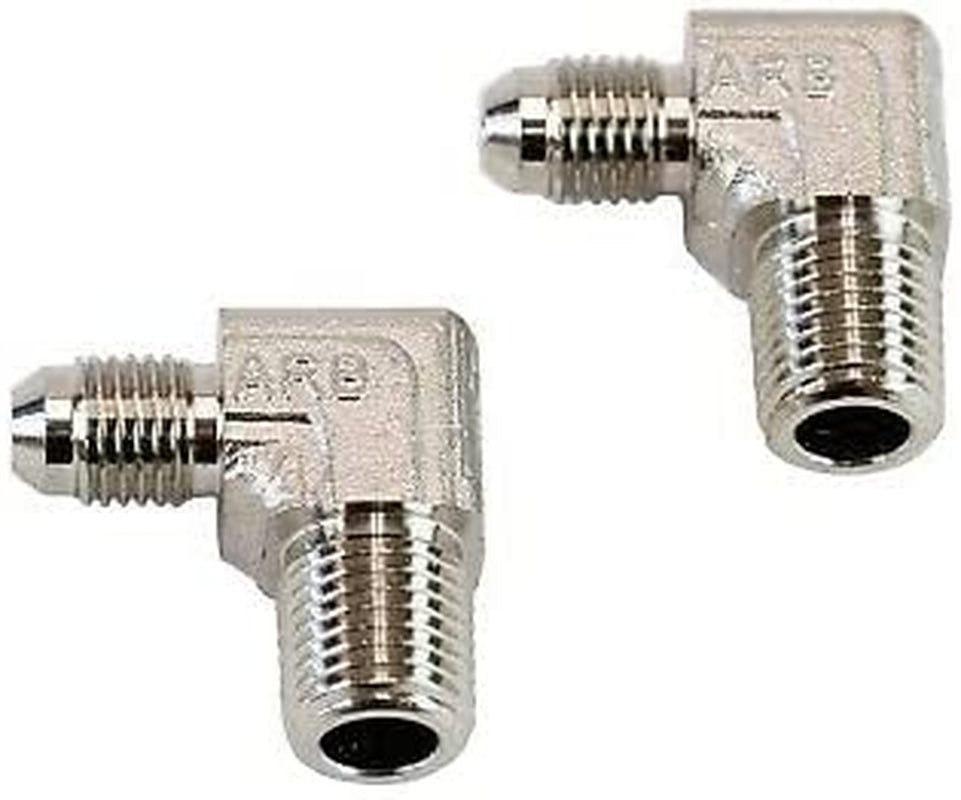

  5. ARB 0740110 Fitting 90° Elbows - Pack of Two

    Air Line Elbow Fitting will provide guidelines for the braided air hose in order to avoid the hose from pointing up, instead you will provide 90° angle so the hose can have easy access to the side.

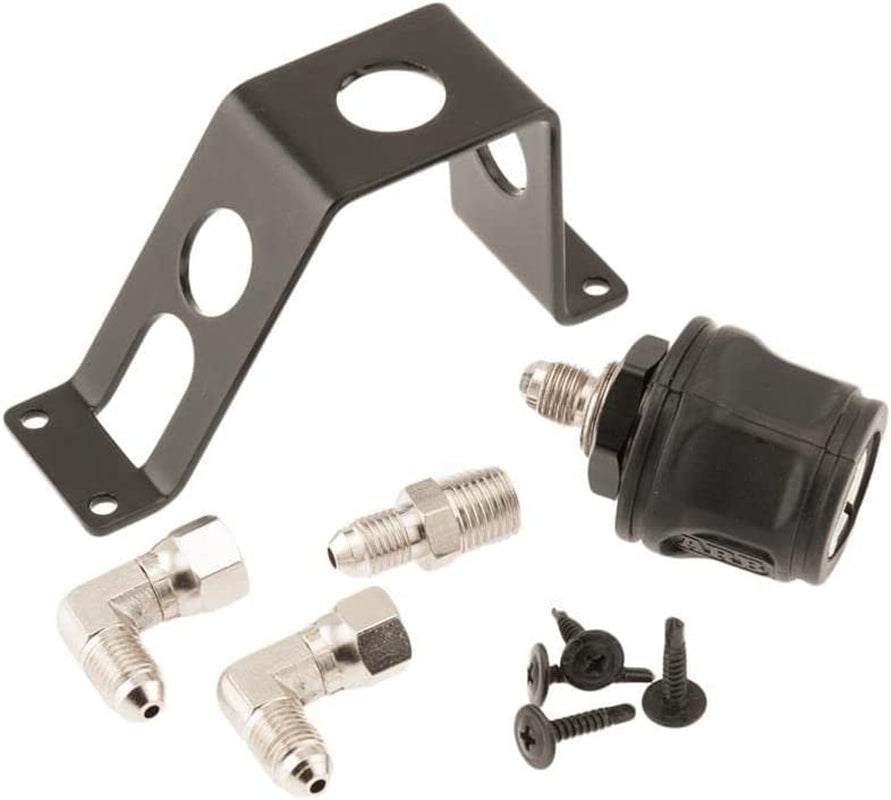

  6. ARB 171314 Brackets -Keep a steady and secure hose

    This mounting brackets kit will provide the stability and a secure system in order to avoid your hose from moving to the side or having internal contact with other devices.

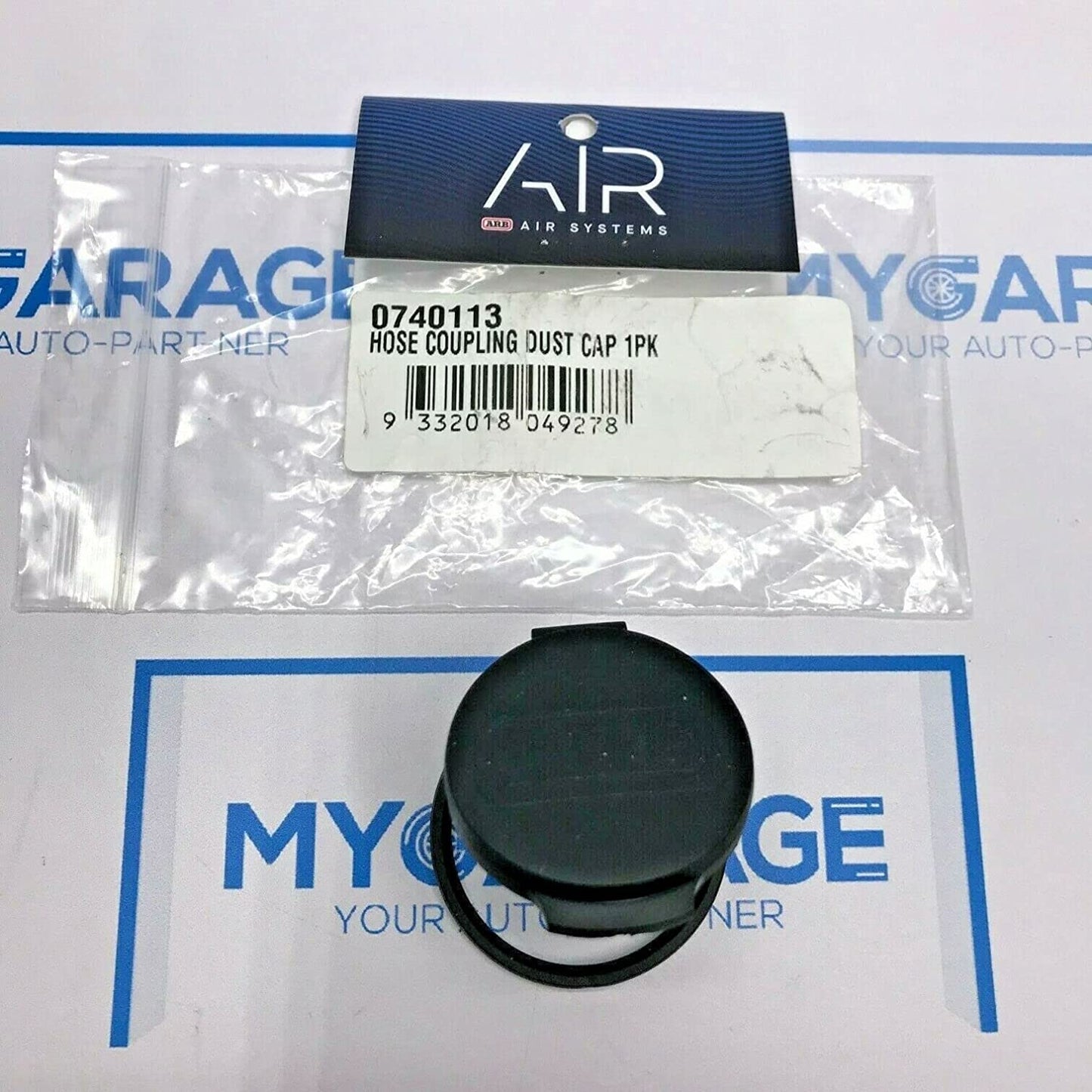

ARB 0740113 Fitting Cap - Protect your air hose

This cap will fit your air-pumping side from the hose in order to avoid dust and water from getting inside.

INFLATION KIT INCLUDES

Fully assembled and tested CKMTA12 Air Compressor / Complete wiring loom / Air Locker solenoid plug-in terminals / ARB 171314 Remote Hose Install Coupling / ARB 0740110 2 x 90 Degrees Air Connectors Elbows / ARB 0740113 Branded Air Hose Coupling Dust Cap / ARB 74203 1 Meter Braided Air Hose

KIT INCLUDES

1
2
3
4
5
6

TECHNICAL SPECS

Voltage 12 Volts (CKMTA12)
Current Draw No-Load 28A (CKMTA12 only) Load 50A (CKMTA12 only)
Air Flow 174.3L/min @ 0Bar [6.16CFM @ 0psi] / 131.7L/min @ 2Bar [4.65CFM @ 29psi]
Total Weight 8.8kg [19.4lbs]
Size 102mm x 190mm x 275mm (H,L,W) [4.0” x 7.5” x 10.8”]
Outlet Port 1 /4” NPT
Pressure Switch Open 10.3Bar [150psi] / Closed 9.3Bar [135psi]
Safety Valve OPEN @ > ~12.4Bar [180 psi]
