(CKMTP12) 12V Twin Motor High Performance Portable Air Compressor
(CKMTP12) 12V Twin Motor High Performance Portable Air Compressor
Couldn't load pickup availability
- Ultra compact twin motor, dual cylinder design makes this the high flowing portable compressor of its size on the market at 6.16 CFM (no load) and 4.65 CFM (at 29 PSI)
- Integrated aluminum air tank and pressure switch regulates pressure between 135 PSI and 150 PSI which is suited to most air powered tools
- Mounted in a waterproof carry case constructed from a durable impact resistant polymer; the carry case has convenient compartments for storing the air hose and other compressor accessories
- Ducted IP55 sealed brushed DC cooling fan and anodized aluminum motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100 percent duty cycle (under room temperature conditions)
- IDEAL FOR INFLATING TIRES ON THE GO OR TO HAVE HANDY WHEN USING MOST AIR TOOLS. Kit includes: Water proof case, twin compressor, air tank, canvas organizer, 20 feet air hose and blow gun
Product Description
Portable Kit Twin Motor Air Compressor
ARB CKMTP12 Portable Twin Motor Air Compressor 12V
Voltage: 12 V
Ideal for: Rapid Inflation of small, medium, large, and over-sized tires / Kit includes: Waterproof case, twin compressor, 4 Liters air tank, canvas organizer, 20 feet air hose and blow gun.

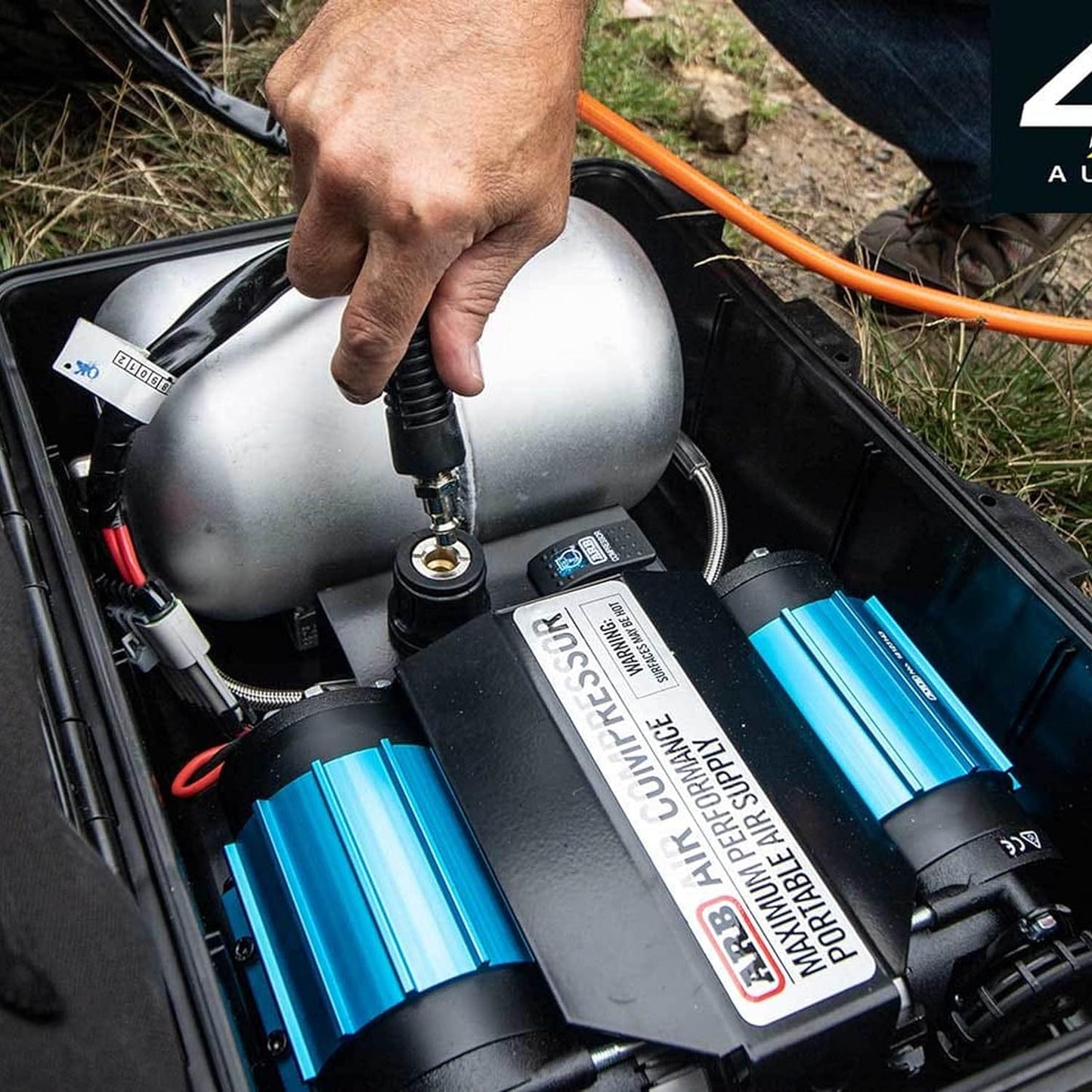

ARB CKMTP12 Twin Motor High Performance Portable Air Compressor
ARB’s new twin portable air compressor was designed to fill the market need for a portable compact-sized yet high-performance compressed air source for the rapid inflation of large tires and the high volume air needs of most air-powered tools. The ARB twin portable air compressor is a world-class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions.
-

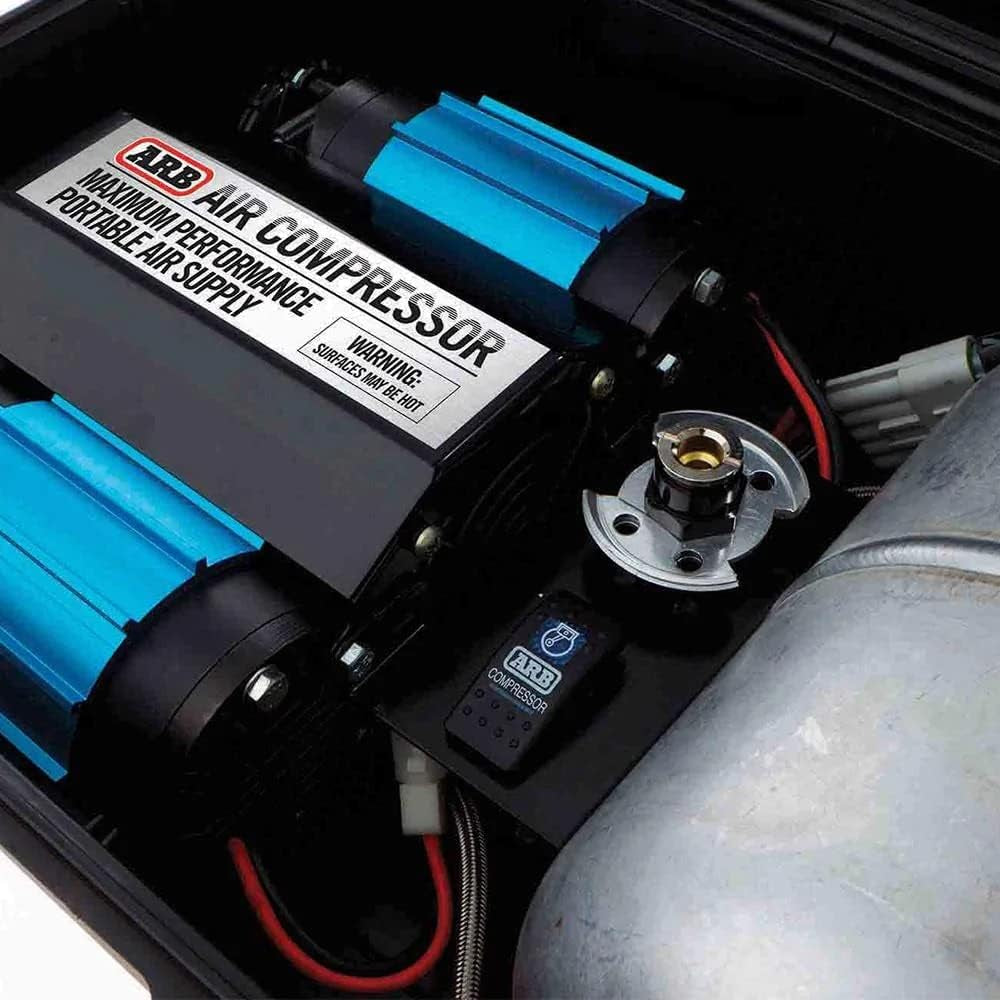

TWIN MOTORS
Ultra compact twin motor, dual cylinder design makes this the highest flowing portable compressor of its size on the market at 6.16 CFM (no load) and 4.65 CFM (at 29 PSI).
-
COOLING FAN
Ducted IP55 sealed brushed DC cooling fan and anodized aluminum motor mounting brackets effectively dissipate heat from the motors, heads, and electronics allowing for a 100 % duty cycle.
-

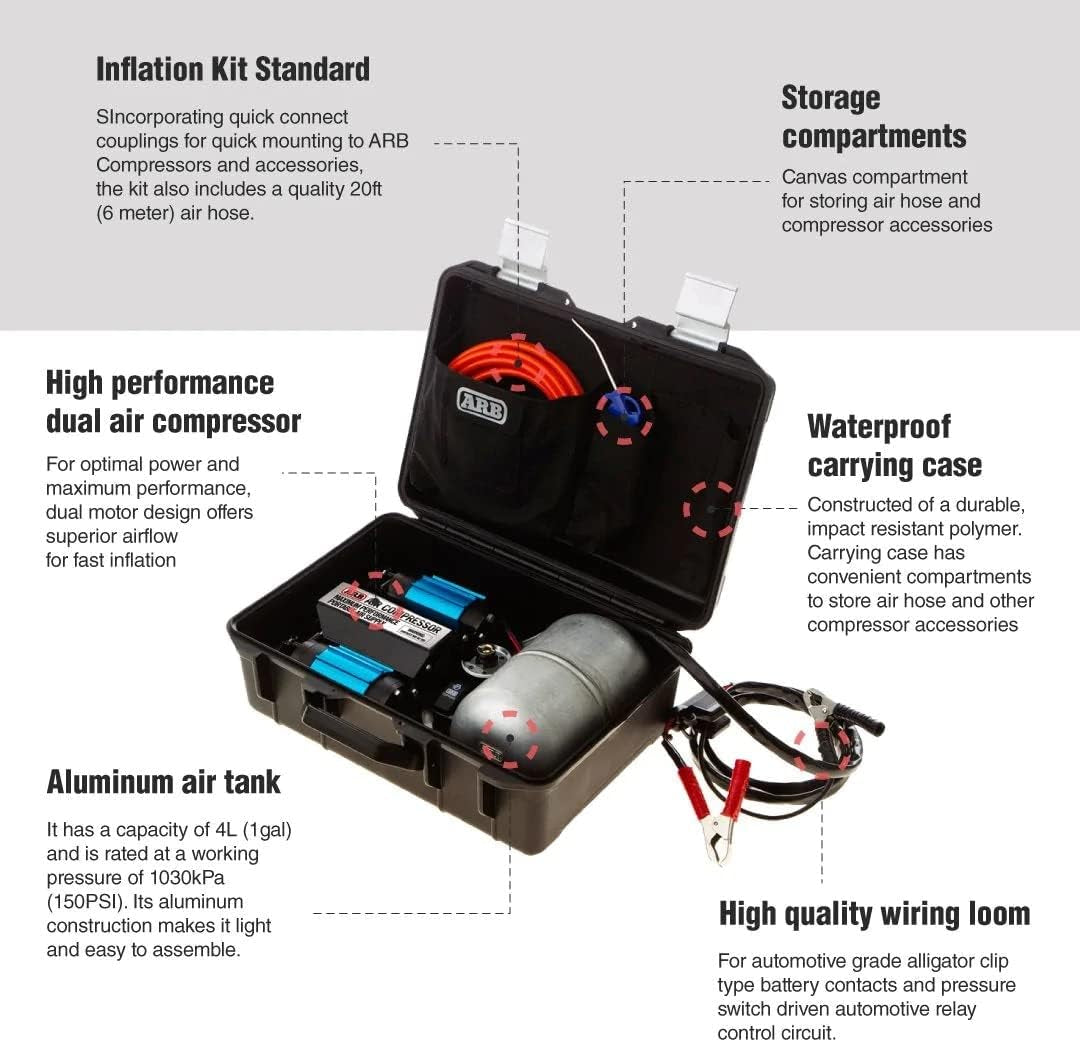

KIT INCLUDES
Kit includes: Waterproof case, twin compressor, air tank, canvas organizer, 20 feet air hose, inflator and blow gun
-

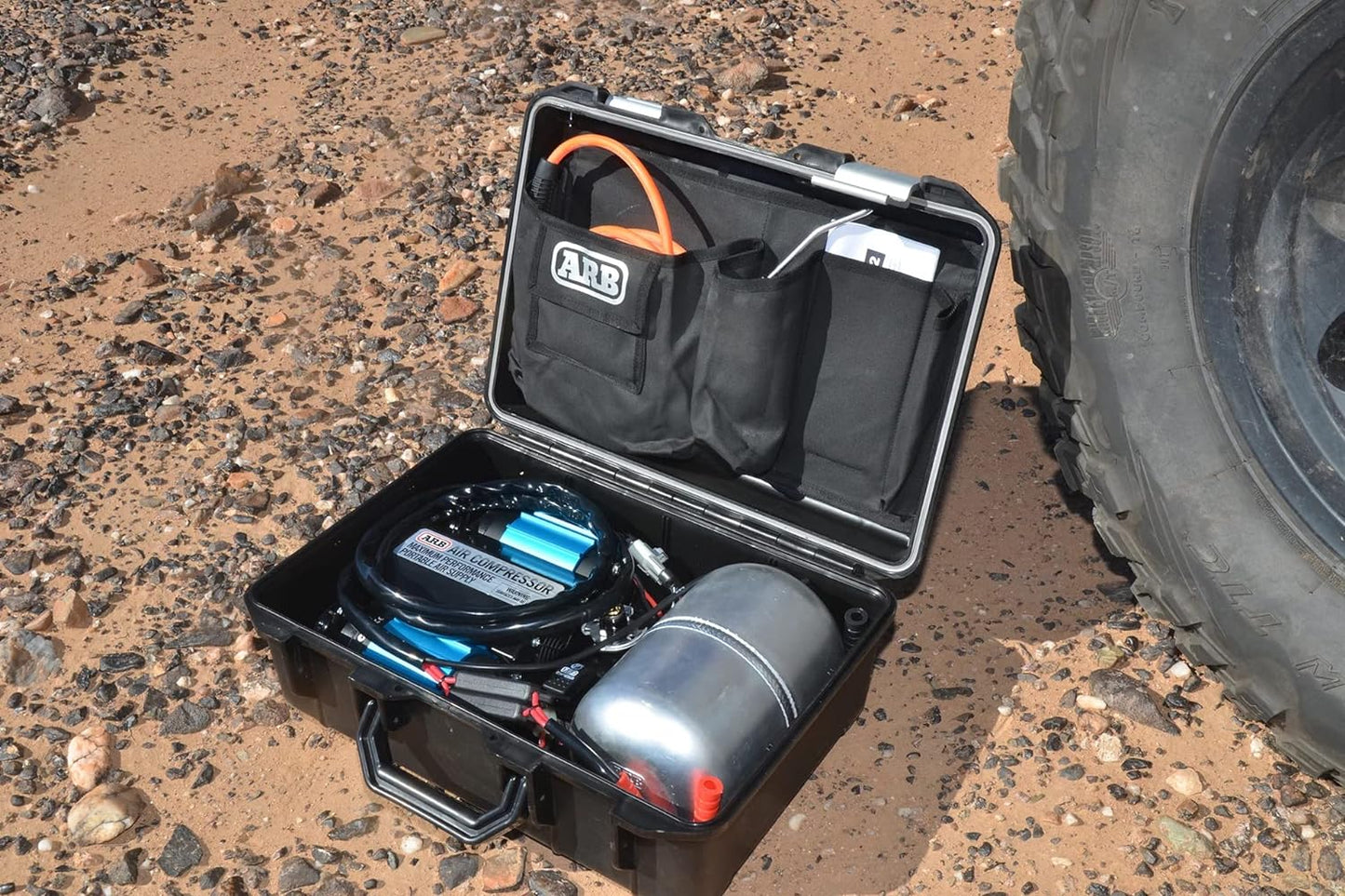

ABOUT THE CARRY CASE
ARB CKMTP12 is mounted in a waterproof carry case constructed from a durable impact-resistant polymer. The Carry Case has Compartments For Storing The Air Hose And Other Compressor Accessories
-
HIGH-END MATERIALS - Sealed for moisture and dust
It incorporates quality components for quiet operation and extended durability. Teflon-impregnated carbon fiber piston seals for a maximum trouble-free life. Anodised mounting bracket dissipates heat.
-
AIR TANK & COMPRESSOR SPECS - 135 PSI to 150 PSI
Integrated Aluminum Air Tank And Pressure Switch regulate pressure between 135 PSI And 150 PSI which Is suited to most Air Powered Tools. Flow rating of 6.16 CFM at 0 PSI and 4.68 CFM at 29 PSI.
TECH SPECS - 100% Quality control guaranteed
- Hard anodized cylinder bores for reduced friction1
- 00% duty cycleS
- ealed for moisture and dust resistanceT
- eflon-impregnated carbon fiber piston seals for a maximum trouble-free lifeA
- nodized mounting bracket dissipates heat

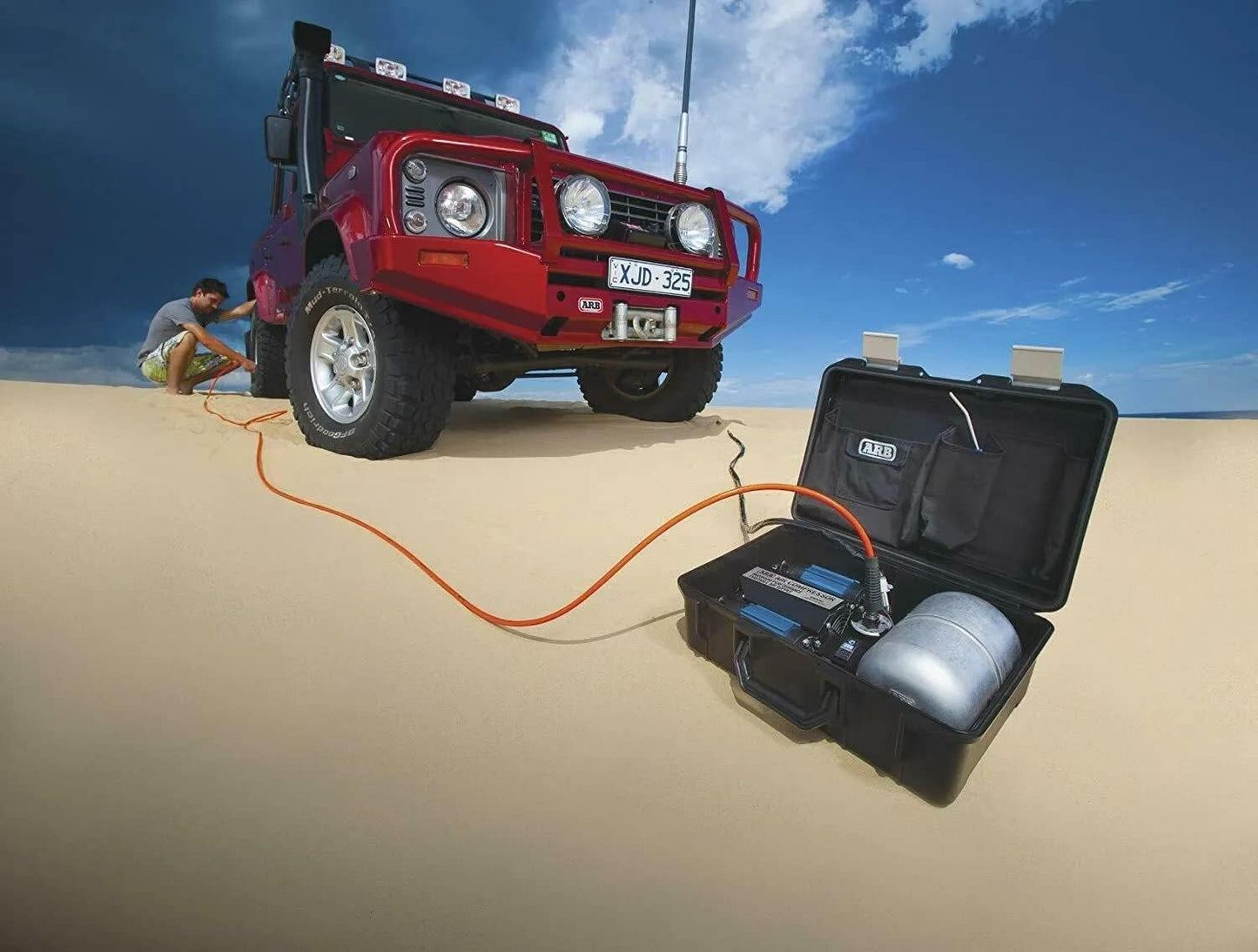

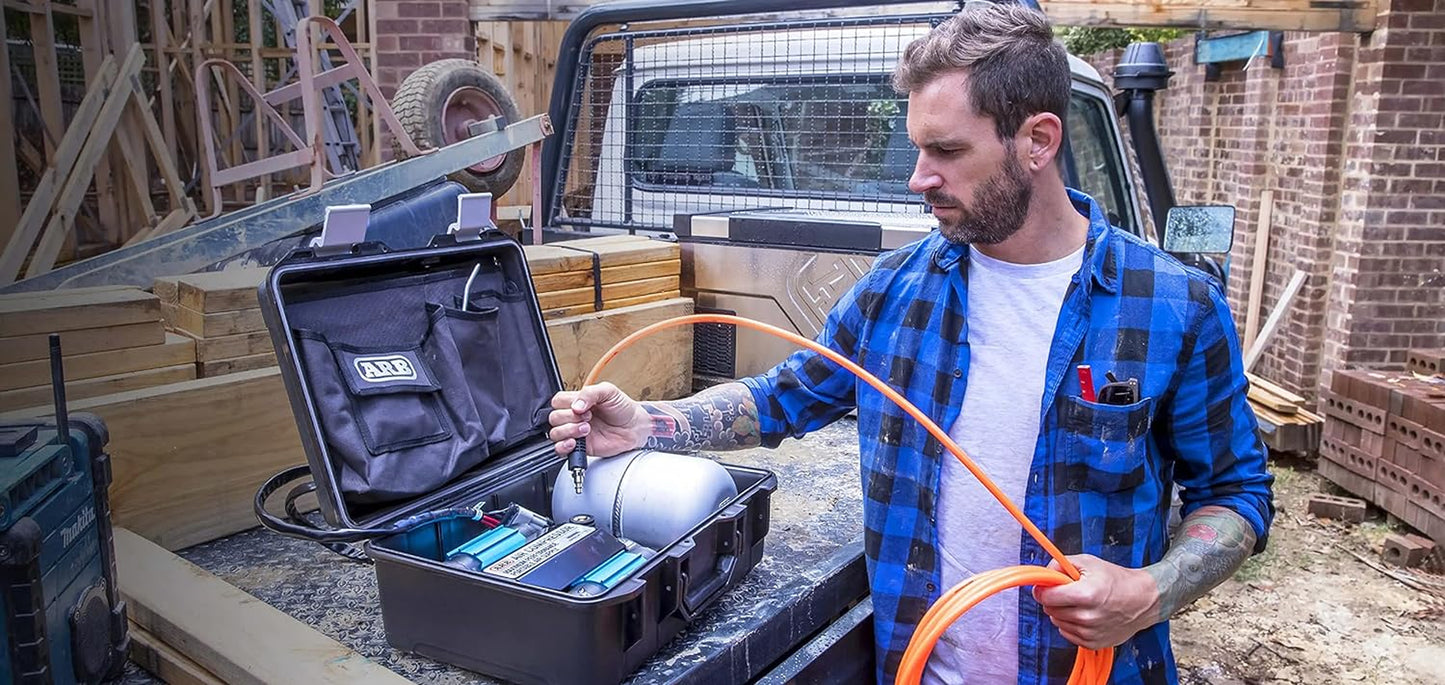

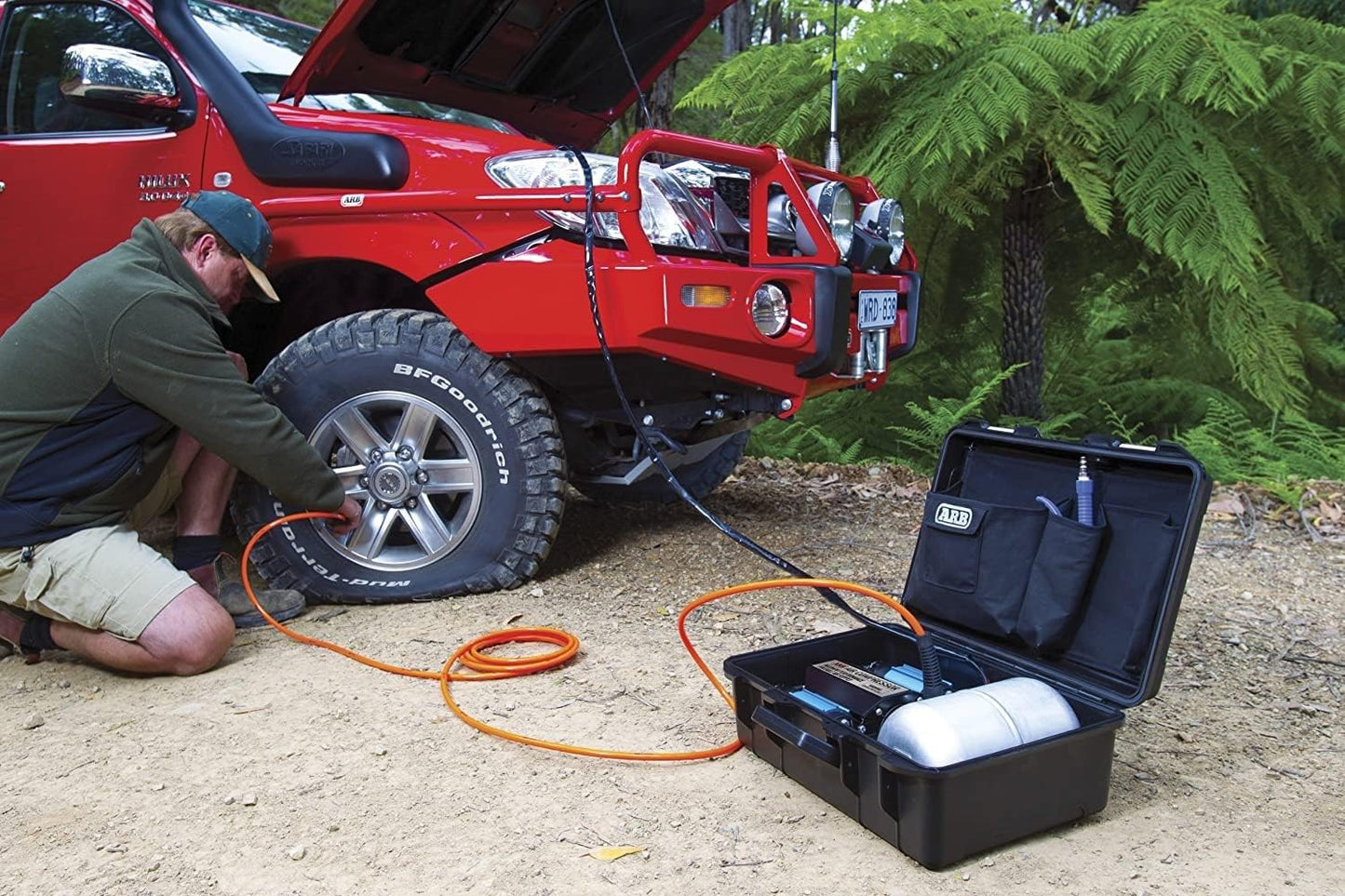

PORTABLE MAKES IT EASIER
As a portable carry case kit air compressor you will always count with it in any all of your 4x4 adventures. Also, it will make it easier to transport in a secure carry case that will protect it from anything.
CKMTP12 DETAILS
| SUPPLY VOLTAGE | 12 Volts DC |
| MAX CURRENT DRAW (each motor) | 34.3 Amps @ 1030 kPa |
| MAX CURRENT DRAW (total) | 68.6 Amps @ 1030 kPa |
| FUSE RATING (each motor) | 40 Amps |
| RELAY RATING (each motor) | 40 Amps |
| WEIGHT (total kit) | 15 kg |
| DIMENSIONS | 18.8 inches X 14.0 inches X 7.3 inches |
| DUTY CYCLE @ 22°C [72°F] | 100 % / 60 minutes per hour |
| PRESSURE SWITCH CLOSED | < 930 kPa / < 135 PSI |
| PRESSURE SWITCH OPEN | > 1030 kPa / > 150 PSI |
| SAFETY VALVE PRESSURE | > 1240 kPa / > 180 PSI |
| MOTOR THERMAL CUT-OUT | 115 °C / 239 °F |
| MAX. AMBIENT TEMPERATURE | 100 °C / 212 °F |
| SPECS @ NO LOAD | TEST PRESSURE: 0 kPa / 0 PSI - CURRENT DRAW: 8.4 Amps - AIR FLOW RATE 174.4 L/min. / 6.16 CFM |
| SPECS @ TYRE PRESSURE | TEST PRESSURE: 200 kPa / 29 PSI - CURRENT DRAW CKMTP12: 50.4 Amps - AIR FLOW RATE: 131.8 L/min. / 4.68 CFM |
