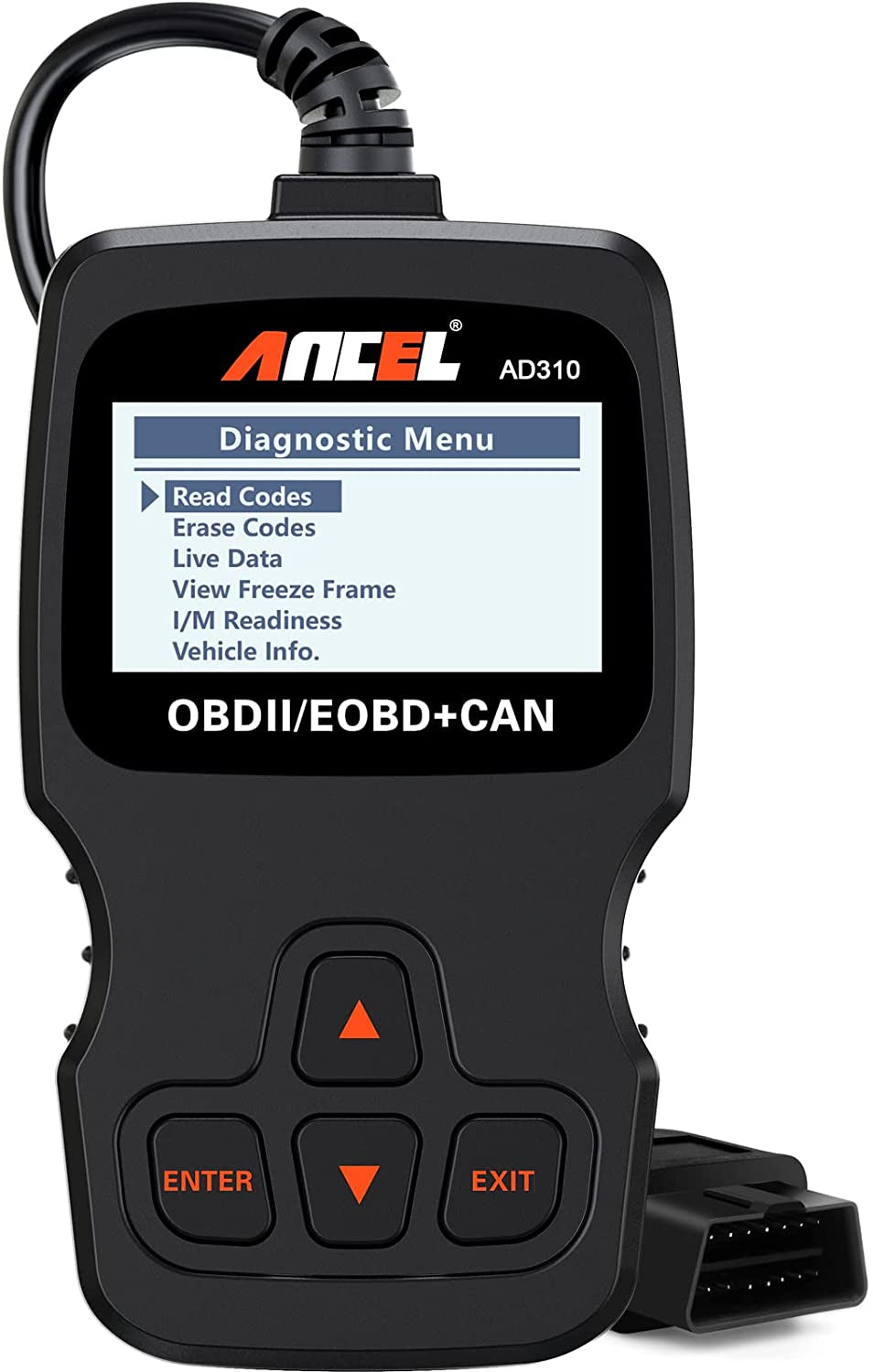

OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool-Black AD310 Classic Enhanced Universal

OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool-Black AD310 Classic Enhanced Universal

Regular price $39.99 USD
Regular price $0.00 USD Sale price $39.99 USD
Sale Sold out
  • CEL Doctor: The ANCEL AD310 is one of the best-selling OBD II scanners on the market and is recommended by Scotty Kilmer, a YouTuber and auto mechanic. It can easily determine the cause of the check engine light coming on, quickly read and clear diagnostic trouble codes, read live data & hard memory data, view freeze frame, I/M monitor readiness and collect vehicle information. Instead of taking car to mechanic shop, you can use it to check the trouble code and show code definition by yourself.
  • Sturdy and Compact: Equipped with a 2.5 foot cable made of very thick, flexible insulation. It is important to have a sturdy scanner as it can easily fall to the ground when working in a car. The AD310 OBD2 scanner is a well-constructed device with a sleek design. It weighs 12 ounces and measures 8.9 x 6.9 x 1.4 inches. Thanks to its compact design and light weight, transporting the device is not a problem. The buttons are clearly labelled and the screen is large and displays results clearly.
  • Accurate Fast and Easy to Use: The AD310 scanner can help you or your mechanic understand if your car is in good condition, provides exceptionally accurate and fast results, reads and clears engine trouble codes in seconds. If you want to find out the cause of the check engine light, this device will let you know immediately and fix the problem right away without any car knowledge. No need for batteries or a charger, get power directly from the OBDII Data Link Connector in your vehicle.
  • OBDII Protocols and Car Compatibility: Many cheap scan tools do not really support all OBD2 protocols. This is not the case with the AD310 scanner as it can support all OBDII protocols such as KWP2000, J1850 VPW, ISO9141, J1850 PWM and CAN. This device also has extensive vehicle compatibility with 1996 US-based, 2000 EU-based and Asian cars, light trucks, SUVs, as well as newer OBD2 and CAN vehicles both domestic and foreign. Check compatibility with your vehicle model before purchasing.
  • Home Necessity and Worthy to Own: This is an excellent code reader to travel or home with as it weighs less and it is compact in design. You can easily slide it in your backpack as you head to the garage, or put it on the dashboard, this will be a great fit for you. The AD310 is not only portable, but also accurate and fast in performance. Moreover, it covers various car brands and is suitable for people who just need a code reader to check their car.

Product Description

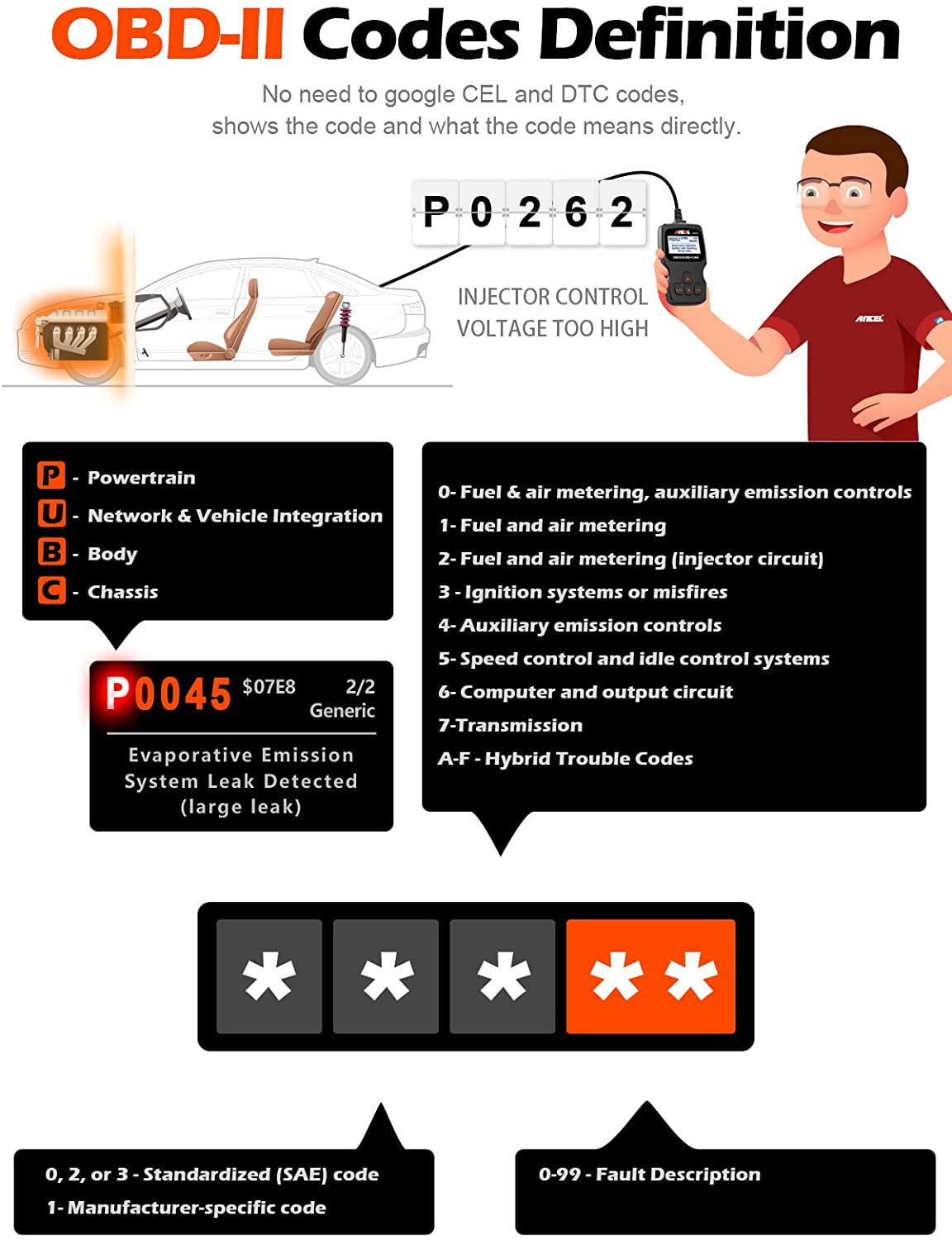

  1. Read & clear diagnostic trouble codes (DTCs), identify and address check engine light (CEL) issues.

  2. Just plug it into your car's OBD II port, turn on the ignition, and you are ready to go.

  3. Works on most 1996 and newer vehicles (cars, light trucks, minivans and SUVs) sold in North America.

  4. Even a beginner can operate this device, no car knowledge required.

  5. Insulated cables and a rugged plastic case protect your device from the elements in your workplace.

1 Main Features 2 Connectivity 3 Vehicle Compatibility 4 Easy To Use 5 Quality Construction

6 Extra Features You Should Know About

  1. Enhanced Functions

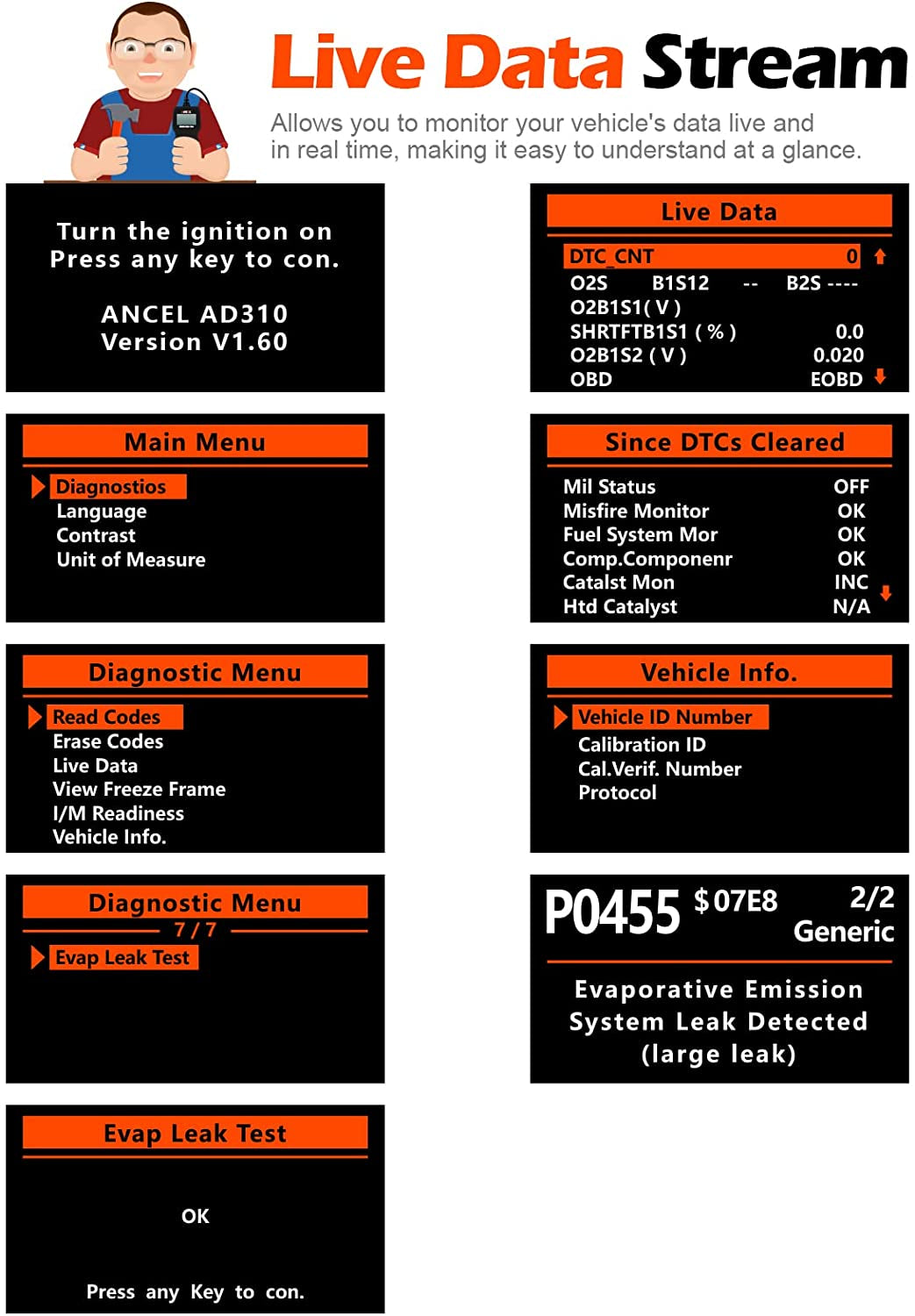

    It can do essential work like resetting monitors, CEL issues, and clearing codes. It can also read live data, collect vehicle information, freeze data and display code definitions on the screen.

  2. Impressive Build Quality

    Each product must undergo a 48-hour aging test before leaving the factory. This helps reduce the chance of components on the PCB falling off during shipping and extends the life of the product.

  3. Patent-Protected

    All ANCEL product designs have independent patents and intellectual property rights, and the products also comply with CE, FCC and other relevant certification standards.

  4. Cost-Effectiveness

    Instead of going to a mechanic, car owners can do some basic maintenance themselves by learning some basic skills and buying the right tools like the AD310 scanner, which can cut costs significantly.

  5. Exhaustive Car Checkups

    With ANCEL AD310 OBD2 scanner, you can read and clear trouble codes in any OBD2-compliant vehicle, domestic or foreign, as long as it was manufactured after 1996, in Europe and Asia after 2000.

  6. SMOG Check Helper

    You can use the AD310 OBD2 scanner to make sure the monitor has been set before you take it to emissions test, helps you pass a vehicle SMOG check easily.

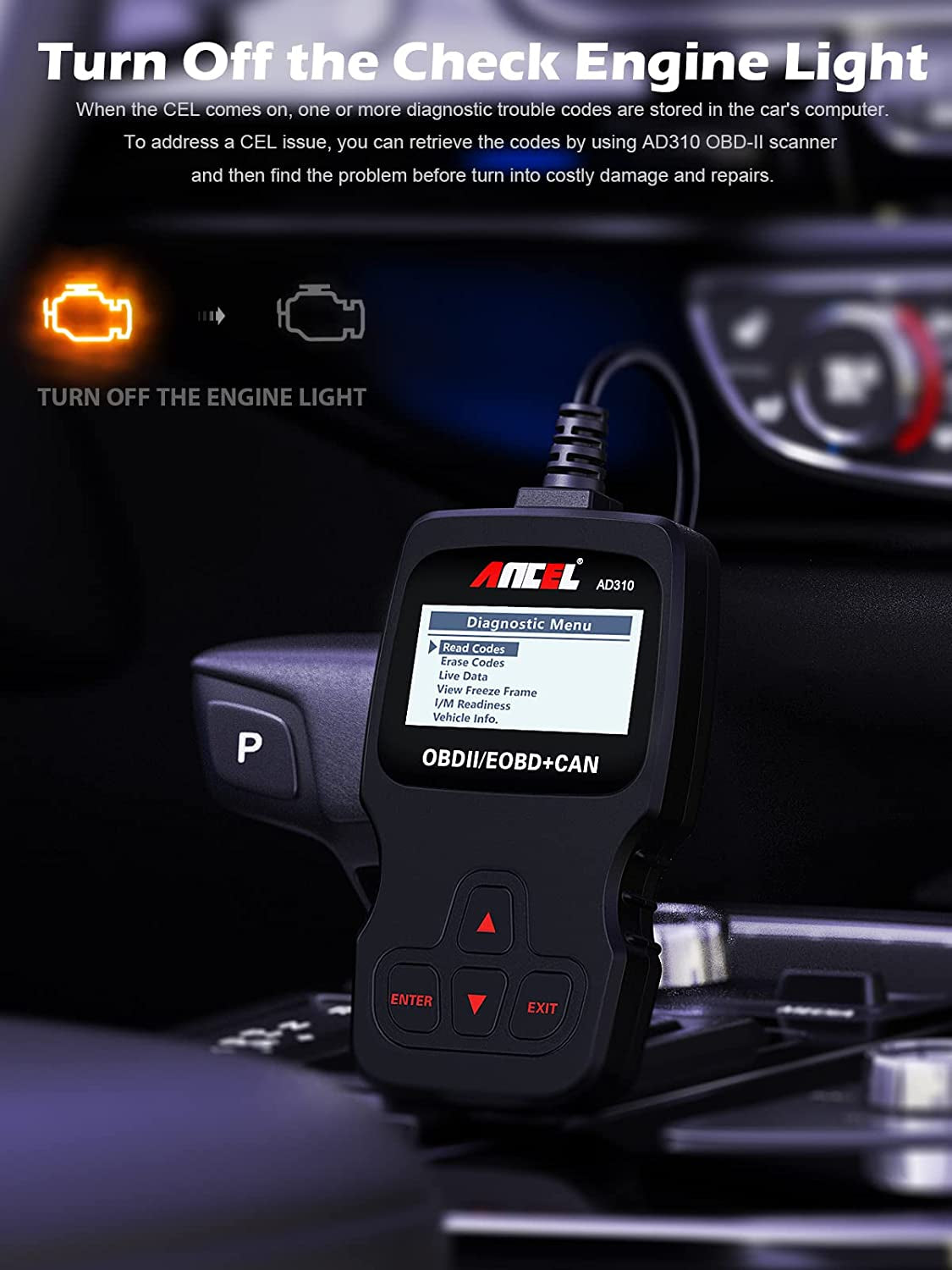

A battery or battery charger is not required. Once connected to your vehicle's 16-pin OBDII DLC, the unit will turn on and prompt you to start the ignition. If your vehicle has a check engine light on, the AD310 scanner is the first tool that can help you determine the cause and find a solution.

Find More ANCEL AD310 Scanner Reviews On Social Media

Where's the OBDII interface?

The OBD2 port is often under the dash, or under a panel below the handbrake in the central console.

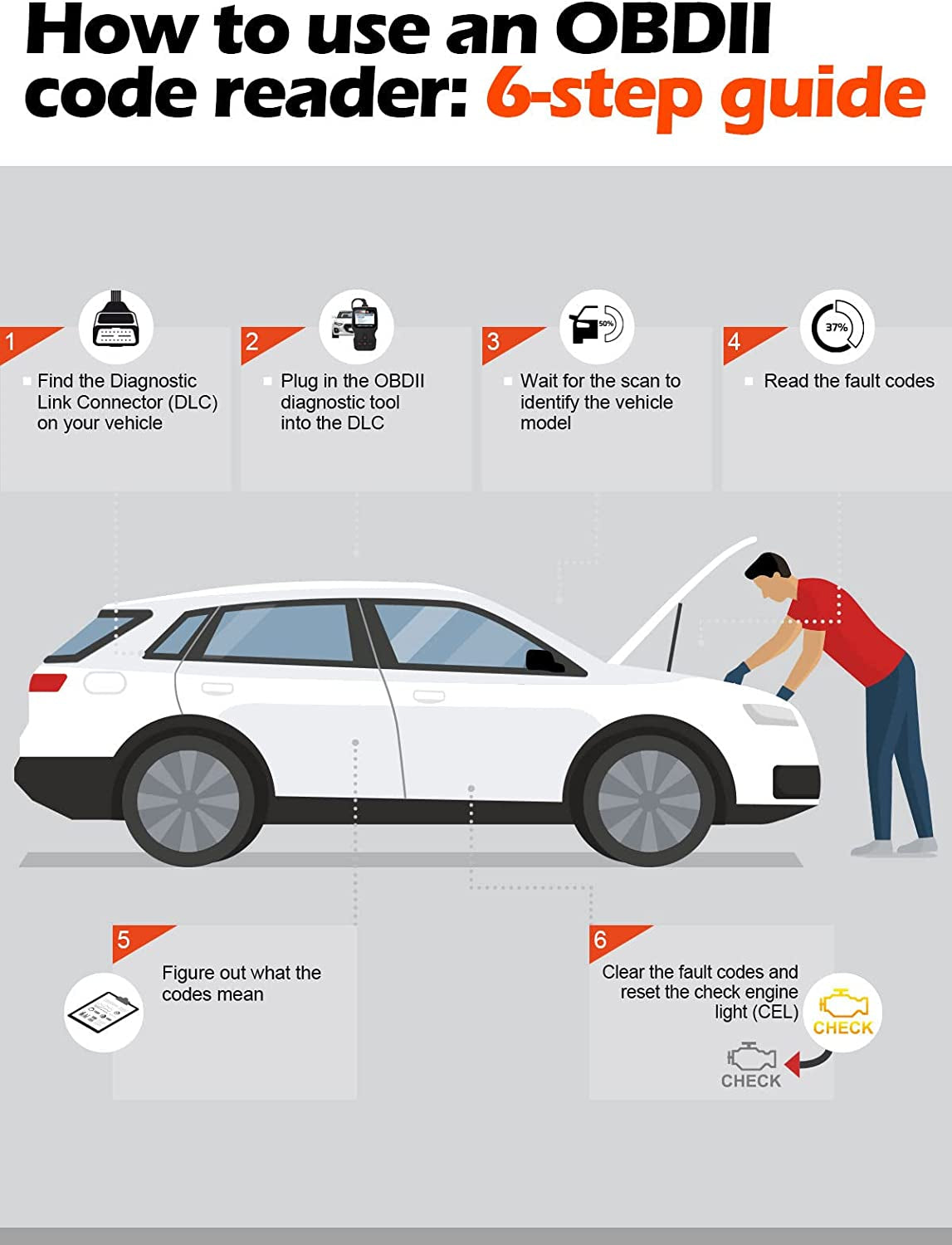

How to get started?

Key operation: 1. turn the ignition on without starting the car; 2. Start the car.

Keyless operation: 1. press start button - press again (do not press brake pedal) - insert tool and read; 2. press brake pedal and start button.

Why I can't erase the fault code?

The fault causing the fault code to show will need to be repaired first then code can be erased.

Will it diagnose ABS or SRS?

Unfortunately, no. The main function of AD310 scanner is to detect the engine system, read and clear the fault codes, but Ancel AD610 can do ABS and SRS.

What should I pay attention to before buying?

Two things you should know: 1. it works only on cars with 12V battery; 2. your car must be standard OBD II protocol (16pin DLC).
