8 Gang Switch Panel BA80 Automatic Dimmable LED Touch Control Panel Box Electronic Relay System Car Touch Switch Box Universal for Truck ATV UTV Boat Marine SUV Caravan -Blue, 2 Years Warranty
8 Gang Switch Panel BA80 Automatic Dimmable LED Touch Control Panel Box Electronic Relay System Car Touch Switch Box Universal for Truck ATV UTV Boat Marine SUV Caravan -Blue, 2 Years Warranty
Regular price
$160.99 USD
Regular price
$0.00 USD
Sale price
$160.99 USD
Unit price
/
per

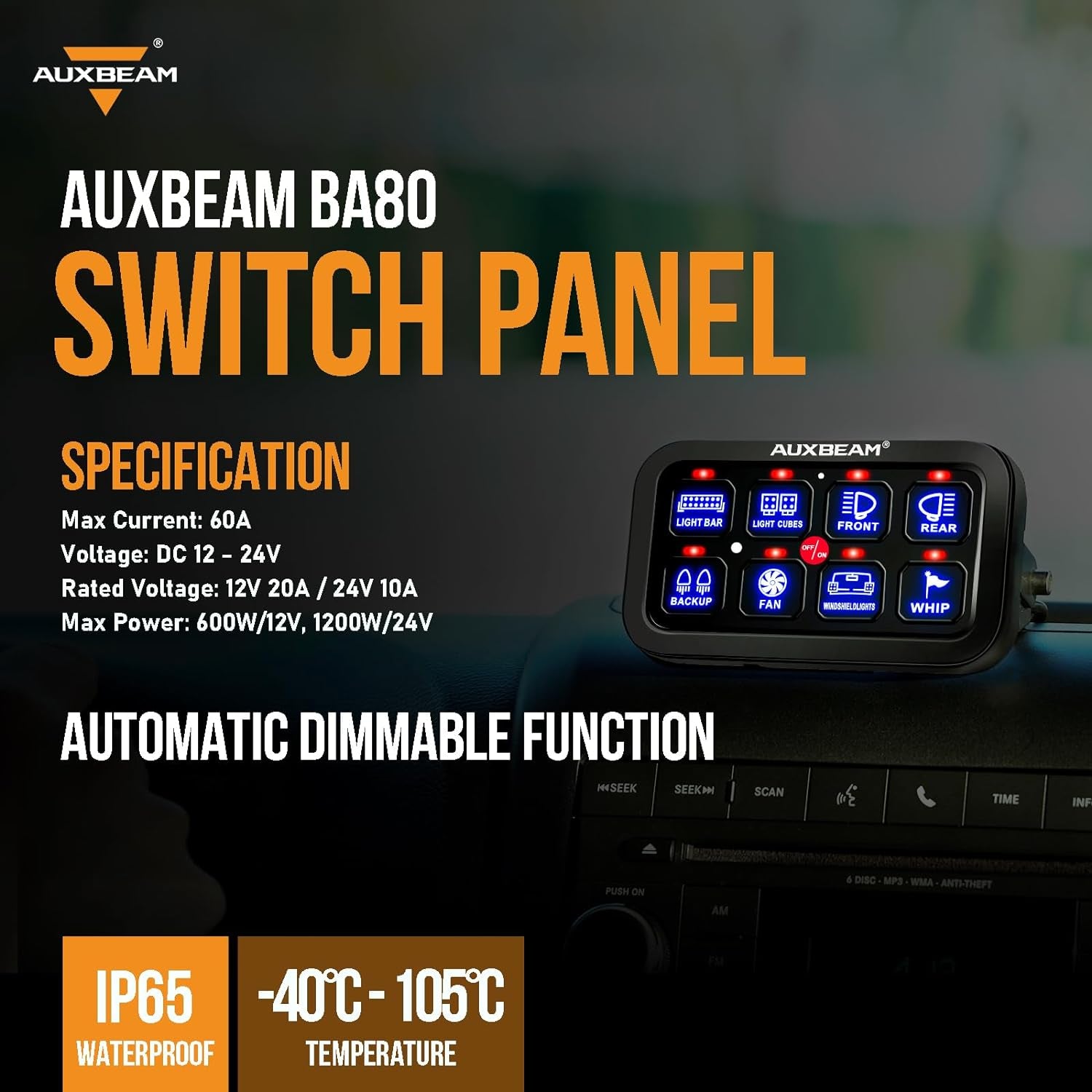

- Technical Specification: Operating voltage: DC 12-24V, max current: 60A, rated voltage: 12V 20A / 24V 10A; operating at 12 Volts: max power rating of 600W, operating at 24 Volts: max power rating of 1200W; operating temperature: -40℉ - 221℉, IP65 waterproof rate, with high sensitivity, stablity and strong anti-interference ability.
- Automatic Dimmable Function: Newest 8 gang switch panel have automatic dimmable feature, the backlight brightness of the switch panel will change according the brightness of environment. The brighter the environment is, the brighter the backlight will be. The perfect 8 gang switch panel automatic dimmable designed, giving you a different user experience and ensuring your driving safety
- Safety Protection: Our this 8 gang switch panel is built-in solid state relay, not the external relay, provide over-voltage protection, reverse polarity protection, over-current protection, thermal protection, come with additional fuses for replacement, providing all your connected LED lights & accessories work safely.

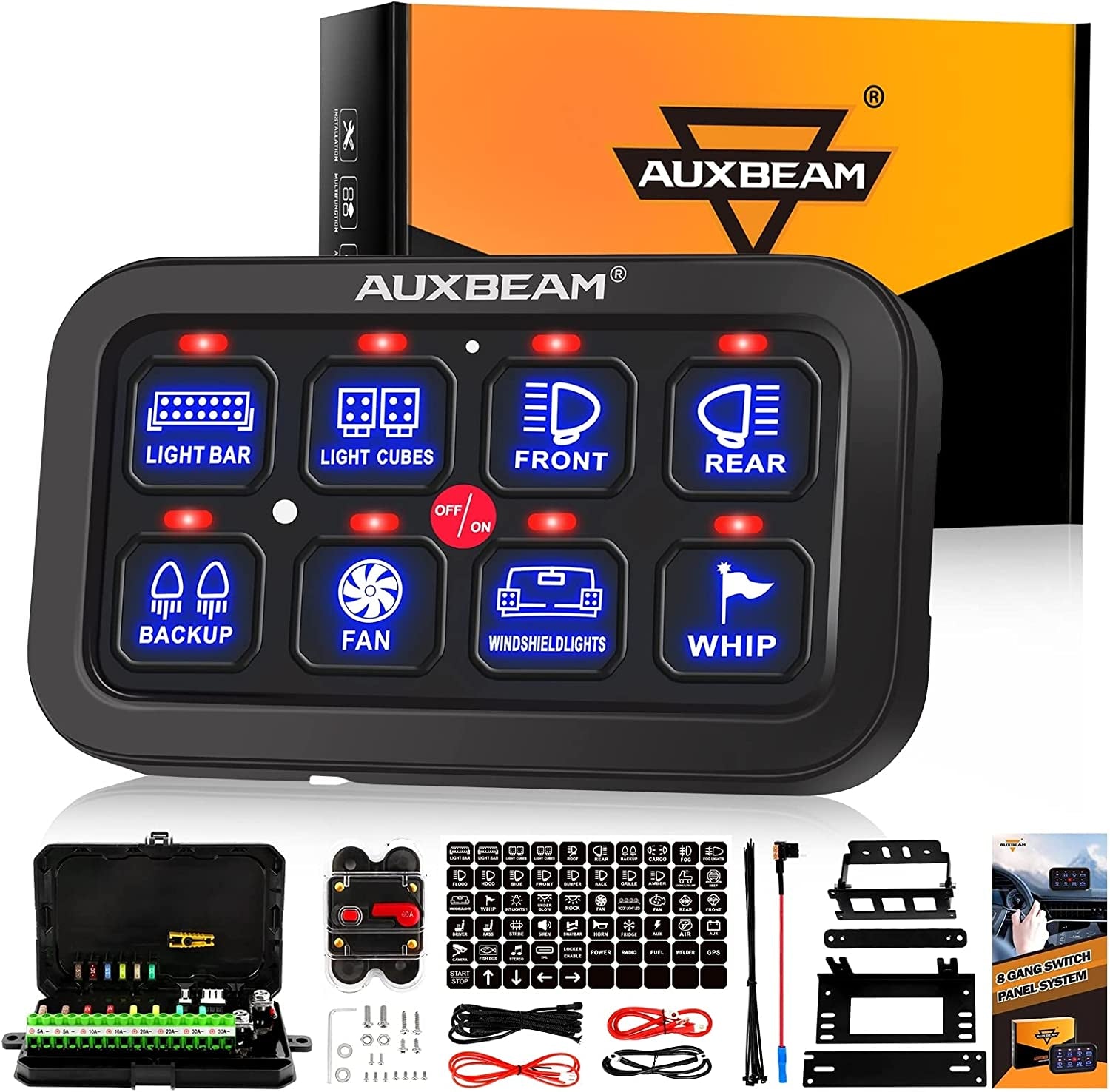

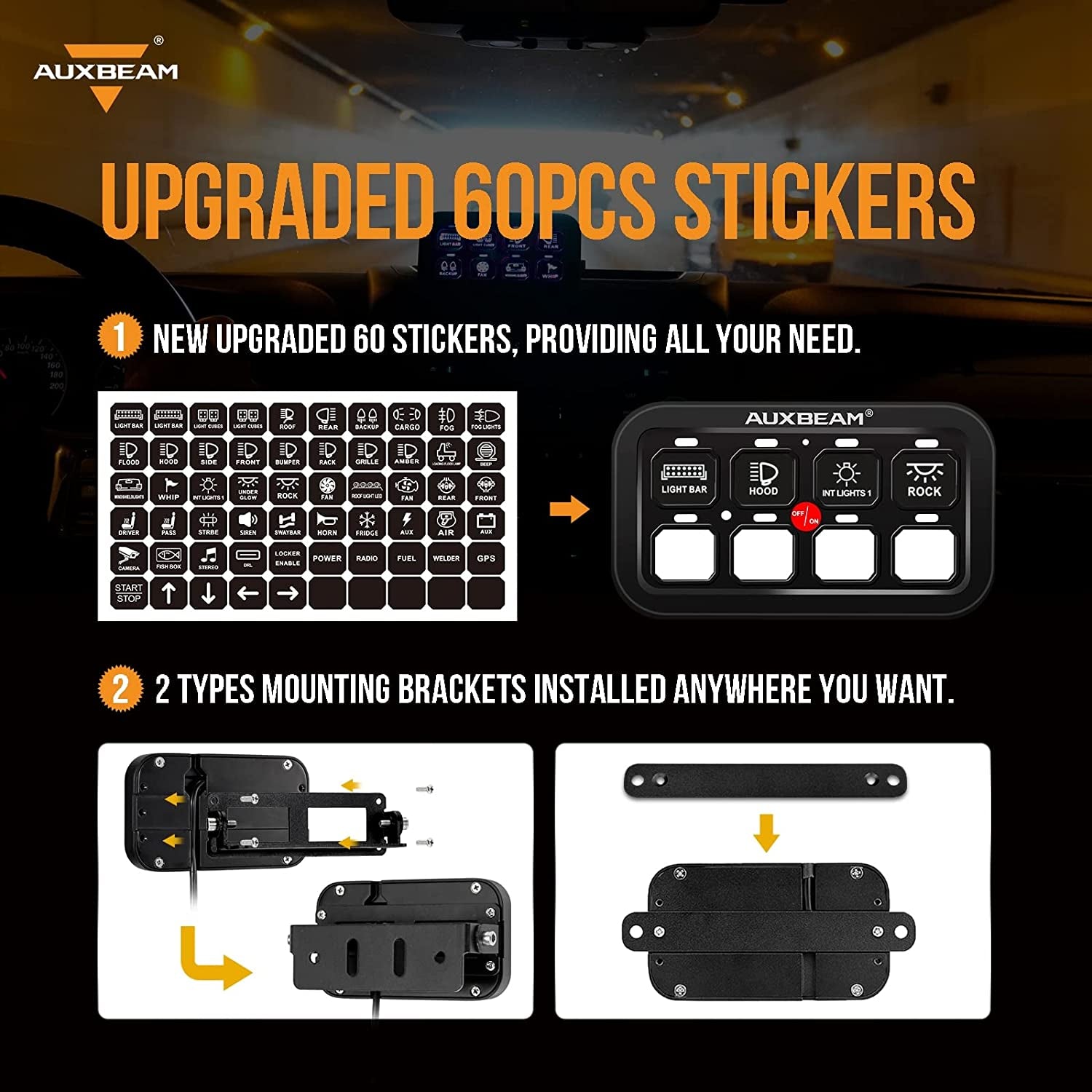

- Easy Installation: No complicated wiring, no need to cut a big hole on your vehicle. Plug & play wiring harnesses ensuring you to connect the led lights or accessories easily. Two types of mounting bracket, you can install it anywhere you need. You can customize your personal switch panel with 60pcs self-adhesive labels. The best way to clean up all the wiring and add a single panel to control everything.
- Wide Application & Warranty: Taking limited space on some vehicles into account, this more compact size switch panel control system is perfect for all situations. Auxbeam 8 In 1 touch screen panel more suitable for your needs, such as truck, boat, off road, powersport, marine, atv, utv, suv, car, bus, heavy duty etc. 2 Year Warranty: free replacement for any quality problems by non-human reasons.

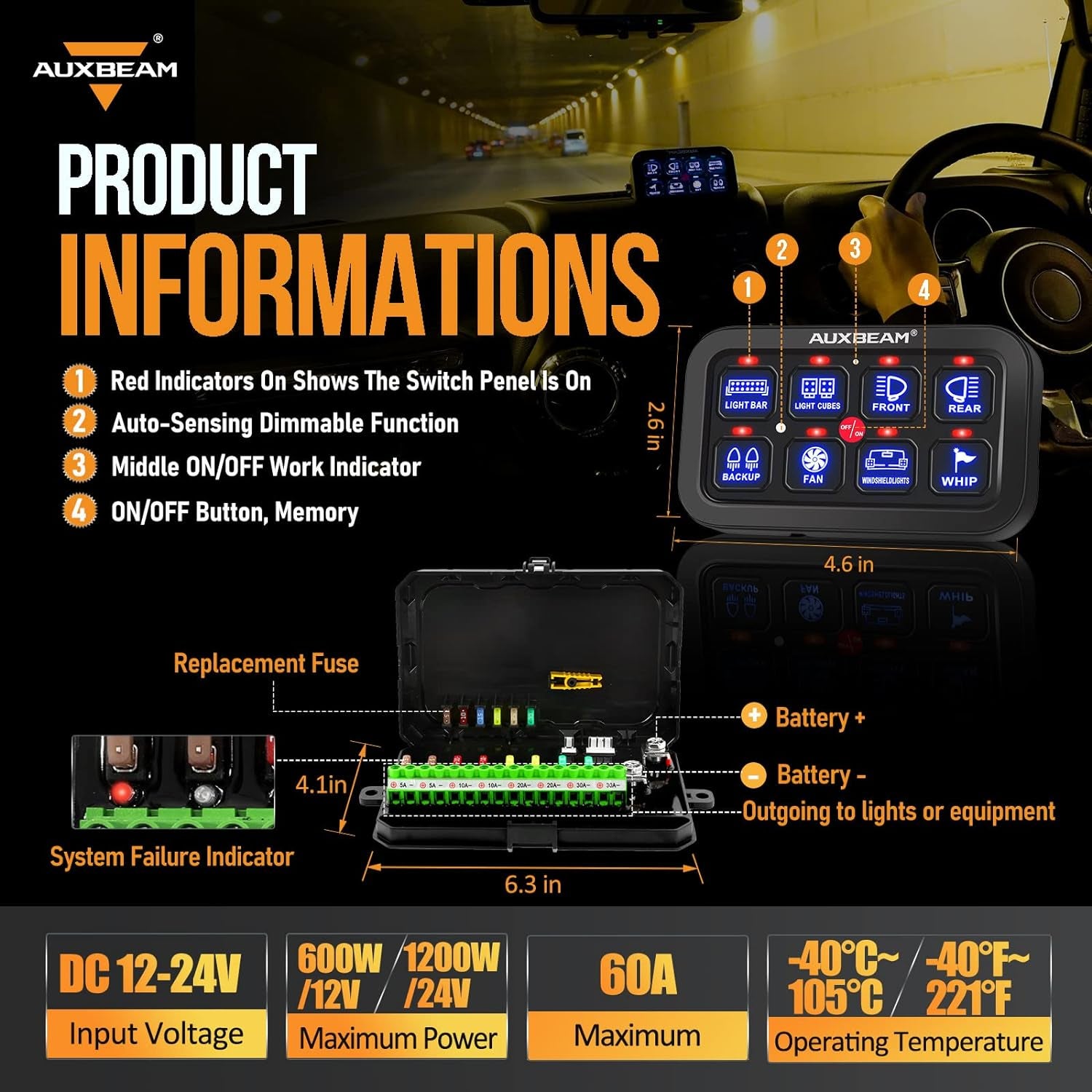

Product Description
AUXBEAM BA80 8 GANG SWITCH PANEL
Max Current: 60A, Working Voltage: DC 12-24V, Rated Voltage: 12V 20A / 24V 10A
Operating @ 12 Volts: Max Power Rating Of 720W, Operating @ 24 Volts: Max Power Rating Of 1200W.

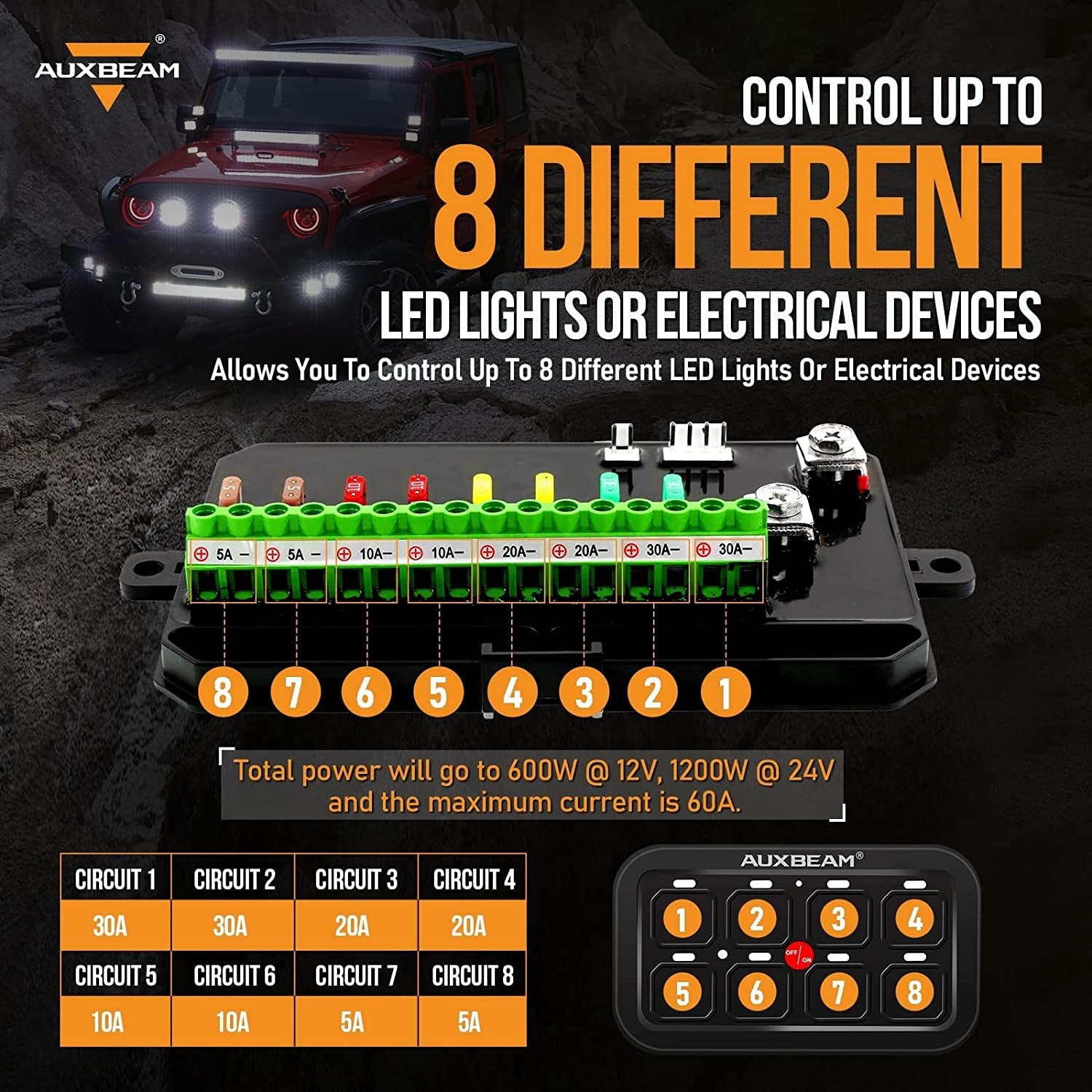

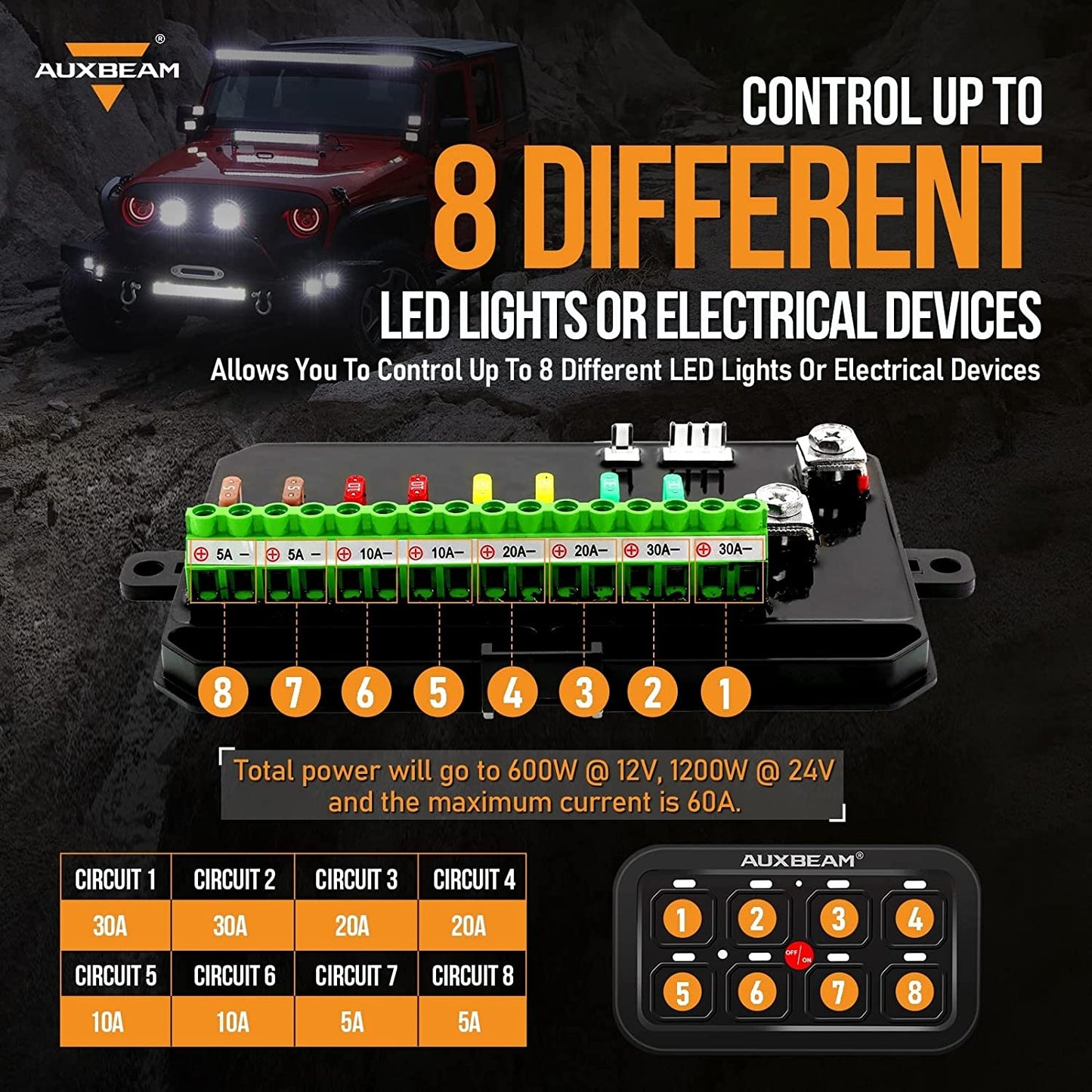

The maximum output current of groud 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A.

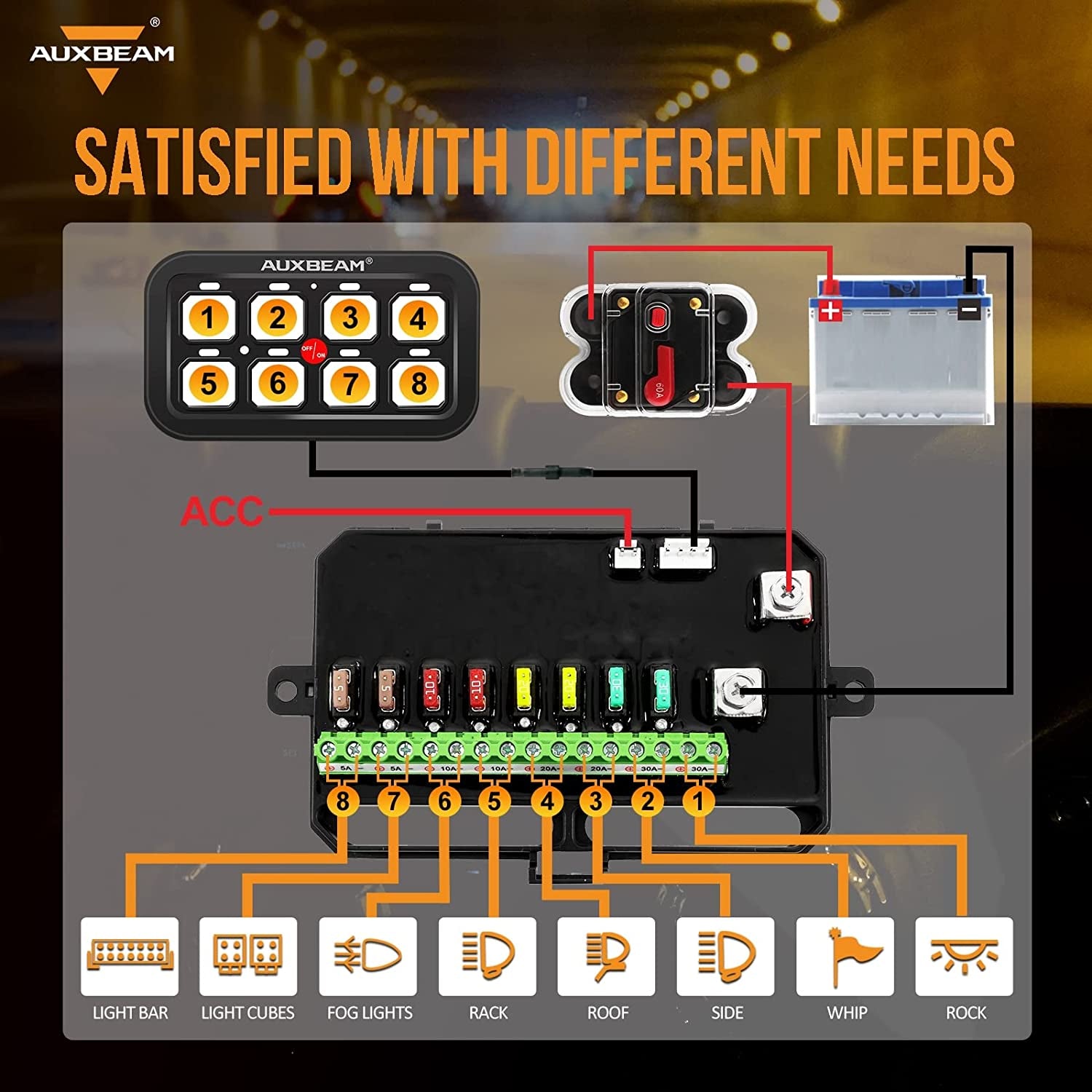

The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.
Make sure all the lamps are connectly before connecting the power cable.
Model | GA80 | BB80 | GB80 | BC60 | GC60 | AR-800 |
---|---|---|---|---|---|---|
Operating Voltage: | DC 12- 24V | DC 12- 24V | DC 12- 24V | DC 12 | DC 12 | DC 12- 24V |
Total Power: | 600~1200W | 600~1200W | 600~1200W | 720W | 720W | 720~1200W |
Backlit Light: | Green | Blue | Green | Blue | Green | RGB |
Automatic Dimmable: | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
